Codegate 2010 - Challenge 7 풀이

패킷 덤프 파일이 주어지고 SSL 관련 문제를 푸는 문제가 많이 보인다. 이런 문제들은 접해본 경험이 없어 풀이를 보고 따라 푸는 것으로 이해하는 수 밖에... :-(

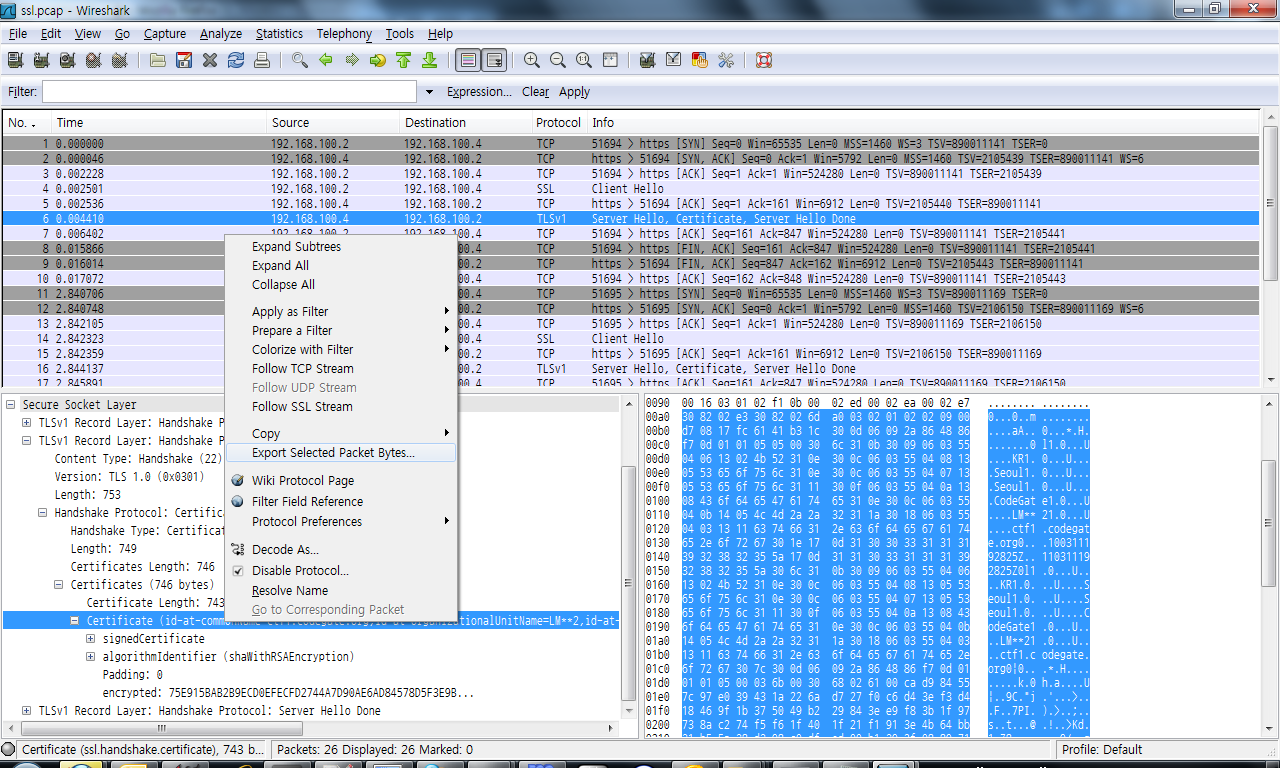

이제 풀이를 시작해 보도록 하자. 우선 해당 패킷에서 공개키 부분을 추출하도록 한다.

추출을 한 후 아래와 같이 OpenSSL을 이용하여 어떤 알고리즘으로 되어 있는지 확인할 수 있다.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
C:\Users\ByJJoon\Downloads>openssl.exe x509 -inform DER -in test.der -text
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            d7:08:17:fc:61:41:b3:1c
        Signature Algorithm: sha1WithRSAEncryption
        Issuer: C=KR, ST=Seoul, L=Seoul, O=CodeGate, OU=LM**2, CN=ctf1.codegate.org
        Validity
            Not Before: Mar 11 19:28:25 2010 GMT
            Not After : Mar 11 19:28:25 2011 GMT
        Subject: C=KR, ST=Seoul, L=Seoul, O=CodeGate, OU=LM**2, CN=ctf1.codegate.org
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
            RSA Public Key: (768 bit)
                Modulus (768 bit):
                    00:ca:d9:84:55:7c:97:e0:39:43:1a:22:6a:d7:27:
                    f0:c6:d4:3e:f3:d4:18:46:9f:1b:37:50:49:b2:29:
                    84:3e:e9:f8:3b:1f:97:73:8a:c2:74:f5:f6:1f:40:
                    1f:21:f1:91:3e:4b:64:bb:31:b5:5a:38:d3:98:c0:
                    df:ed:00:b1:39:2f:08:89:71:1c:44:b3:59:e7:97:
                    6c:61:7f:cc:73:4f:06:e3:e9:5c:26:47:60:91:b5:
                    2f:46:2e:79:41:3d:b5
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Subject Key Identifier:
                3E:35:CC:D2:D9:A5:5E:B7:E7:9C:03:E4:40:30:3A:9E:B3:BD:9D:F6
            X509v3 Authority Key Identifier:
                keyid:3E:35:CC:D2:D9:A5:5E:B7:E7:9C:03:E4:40:30:3A:9E:B3:BD:9D:F6
                DirName:/C=KR/ST=Seoul/L=Seoul/O=CodeGate/OU=LM**2/CN=ctf1.codegate.org
                serial:D7:08:17:FC:61:41:B3:1C

            X509v3 Basic Constraints:
                CA:TRUE
    Signature Algorithm: sha1WithRSAEncryption
        75:e9:15:ba:b2:b9:ec:d0:ef:ec:fd:27:44:a7:d9:0a:e6:ad:
        84:57:8d:5f:3e:9b:97:0d:34:cb:d7:d4:2b:2e:9f:8d:d6:51:
        a2:7c:cf:c1:5d:47:5a:83:1b:89:fd:f5:da:32:c9:73:00:2a:
        58:8f:9a:bc:e7:fb:fe:69:0c:70:bd:a2:3f:01:4a:d1:95:8d:
        4e:b4:6a:f1:83:dc:4d:97:e0:6f:e7:89:86:24:80:19:af:22:
        b2:cd:7e:d0:8f:4e
-----BEGIN CERTIFICATE-----
MIIC4zCCAm2gAwIBAgIJANcIF/xhQbMcMA0GCSqGSIb3DQEBBQUAMGwxCzAJBgNV
BAYTAktSMQ4wDAYDVQQIEwVTZW91bDEOMAwGA1UEBxMFU2VvdWwxETAPBgNVBAoT
CENvZGVHYXRlMQ4wDAYDVQQLFAVMTSoqMjEaMBgGA1UEAxMRY3RmMS5jb2RlZ2F0
ZS5vcmcwHhcNMTAwMzExMTkyODI1WhcNMTEwMzExMTkyODI1WjBsMQswCQYDVQQG
EwJLUjEOMAwGA1UECBMFU2VvdWwxDjAMBgNVBAcTBVNlb3VsMREwDwYDVQQKEwhD
b2RlR2F0ZTEOMAwGA1UECxQFTE0qKjIxGjAYBgNVBAMTEWN0ZjEuY29kZWdhdGUu
b3JnMHwwDQYJKoZIhvcNAQEBBQADawAwaAJhAMrZhFV8l+A5Qxoiatcn8MbUPvPU
GEafGzdQSbIphD7p+Dsfl3OKwnT19h9AHyHxkT5LZLsxtVo405jA3+0AsTkvCIlx
HESzWeeXbGF/zHNPBuPpXCZHYJG1L0YueUE9tQIDAQABo4HRMIHOMB0GA1UdDgQW
BBQ+NczS2aVet+ecA+RAMDqes72d9jCBngYDVR0jBIGWMIGTgBQ+NczS2aVet+ec
A+RAMDqes72d9qFwpG4wbDELMAkGA1UEBhMCS1IxDjAMBgNVBAgTBVNlb3VsMQ4w
DAYDVQQHEwVTZW91bDERMA8GA1UEChMIQ29kZUdhdGUxDjAMBgNVBAsUBUxNKioy
MRowGAYDVQQDExFjdGYxLmNvZGVnYXRlLm9yZ4IJANcIF/xhQbMcMAwGA1UdEwQF
MAMBAf8wDQYJKoZIhvcNAQEFBQADYQB16RW6srns0O/s/SdEp9kK5q2EV41fPpuX
DTTL19QrLp+N1lGifM/BXUdagxuJ/fXaMslzACpYj5q85/v+aQxwvaI/AUrRlY1O
tGrxg9xNl+Bv54mGJIAZryKyzX7Qj04=
-----END CERTIFICATE-----

RSA 768bit로 암호화 되어 있음을 알 수 있다. RSA 768bit 는 이미 소인수분해가 성공되었다. 아래 위키피디아 페이지에서 인수분해가 성공된 RSA 알고리즘을 확인할 수 있다. http://en.wikipedia.org/wiki/RSA_numbers

RSA-768 의 P, Q 값은 아래와 같다.

P-33478071698956898786044169848212690817704794983713768568912431388982883793878002287614711652531743087737814467999489 Q-36746043666799590428244633799627952632279158164343087642676032283815739666511279233373417143396810270092798736308917

이 제 P, Q 값을 확인하였으니 비밀키를 생성해 보도록 하자. 생성하는 코드는 Didier Stevens' Authenticode Challenge 의 풀이에 나오는 코드를 그대로 사용할 수 있다.

Didier Stevens' Authenticode Challenge : http://blog.didierstevens.com/2008/07/22/authenticode-challenge/ 풀이 : http://blog.didierstevens.com/2008/09/07/mister-p-and-qs-excellent-solution/

파일 : solution

CreatePEM.c

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
/**********************************************************************
This program is free software; you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation; either version 2 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
GNU General Public License for more details.

You should have received a copy of the GNU General Public License
along with this program; if not, write to the Free Software
Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307 USA
************************************************************************
    (c) 2008 by Mister P and Q  < Mister.PandQ@gmail.com >
***********************************************************************/

#define _GNU_SOURCE
#include <stdio.h>

#include <stdlib.h>
#include <string.h>
#include "e_os.h"

#include <openssl/bio.h>
#include <openssl/ssl.h>
#include <openssl/bn.h>
#include <openssl/crypto.h>
#ifndef OPENSSL_NO_ENGINE
#include <openssl/engine.h>
#endif
// This is a modified version of the genrsa.c sample that is part of the OpenSSL package
int main(int argc, char *argv[])
{

    BIGNUM *p_tBNExp            = NULL;
    RSA       *p_tRSAKey            = NULL;
    BN_CTX *ctx                    = NULL;
    BIGNUM *r0=NULL,*r1=NULL,*r2=NULL,*r3=NULL,*tmp;
    BIGNUM local_r0,local_d,local_p;
    BIGNUM *pr0,*d,*p;
    BIO       *out;
    unsigned long f4            = RSA_F4;
    int ok                        = -1;
    // The two values we obtained from FindPQ or msieve
    char *p_acP = "33478071698956898786044169848212690817704794983713768568912431388982883793878002287614711652531743087737814467999489";
    char *p_acQ = "36746043666799590428244633799627952632279158164343087642676032283815739666511279233373417143396810270092798736308917";

    // Init OpenSSL
    CRYPTO_malloc_init();
    ERR_load_crypto_strings();
    OpenSSL_add_all_algorithms();
    ENGINE_load_builtin_engines();

    ctx=BN_CTX_new();

    BN_CTX_start(ctx);
    r0 = BN_CTX_get(ctx);
    r1 = BN_CTX_get(ctx);
    r2 = BN_CTX_get(ctx);
    r3 = BN_CTX_get(ctx);
    if (r3 == NULL) goto err;

    p_tBNExp = BN_new();
    p_tRSAKey = RSA_new();

    BN_set_word(p_tBNExp, f4);

    /* We need the RSA components non-NULL */
    if(!p_tRSAKey->n && ((p_tRSAKey->n=BN_new()) == NULL)) goto err;
    if(!p_tRSAKey->d && ((p_tRSAKey->d=BN_new()) == NULL)) goto err;
    if(!p_tRSAKey->e && ((p_tRSAKey->e=BN_new()) == NULL)) goto err;
    if(!p_tRSAKey->p && ((p_tRSAKey->p=BN_new()) == NULL)) goto err;
    if(!p_tRSAKey->q && ((p_tRSAKey->q=BN_new()) == NULL)) goto err;
    if(!p_tRSAKey->dmp1 && ((p_tRSAKey->dmp1=BN_new()) == NULL)) goto err;
    if(!p_tRSAKey->dmq1 && ((p_tRSAKey->dmq1=BN_new()) == NULL)) goto err;
    if(!p_tRSAKey->iqmp && ((p_tRSAKey->iqmp=BN_new()) == NULL)) goto err;

    // Copy the defauld (F4) exponent to the RSA key
    BN_copy(p_tRSAKey->e, p_tBNExp);

    // Convert the 2 decimal values for P and Q to the RSA key
    BN_dec2bn(&p_tRSAKey->p, p_acP);
    BN_dec2bn(&p_tRSAKey->q, p_acQ);

    // If P is bigger van Q, swap values
    if (BN_cmp(p_tRSAKey->p,p_tRSAKey->q) < 0)
        {
        tmp=p_tRSAKey->p;
        p_tRSAKey->p=p_tRSAKey->q;
        p_tRSAKey->q=tmp;
        }

    /* calculate n */
    if (!BN_mul(p_tRSAKey->n,p_tRSAKey->p,p_tRSAKey->q,ctx)) goto err;

    /* calculate d */
    if (!BN_sub(r1,p_tRSAKey->p,BN_value_one())) goto err;    /* p-1 */
    if (!BN_sub(r2,p_tRSAKey->q,BN_value_one())) goto err;    /* q-1 */
    if (!BN_mul(r0,r1,r2,ctx)) goto err;    /* (p-1)(q-1) */
    if (!(p_tRSAKey->flags & RSA_FLAG_NO_CONSTTIME))
        {
          pr0 = &local_r0;
          BN_with_flags(pr0, r0, BN_FLG_CONSTTIME);
        }
    else
      pr0 = r0;
    if (!BN_mod_inverse(p_tRSAKey->d,p_tRSAKey->e,pr0,ctx)) goto err;    /* d */

    /* set up d for correct BN_FLG_CONSTTIME flag */
    if (!(p_tRSAKey->flags & RSA_FLAG_NO_CONSTTIME))
        {
        d = &local_d;
        BN_with_flags(d, p_tRSAKey->d, BN_FLG_CONSTTIME);
        }
    else
        d = p_tRSAKey->d;

    /* calculate d mod (p-1) */
    if (!BN_mod(p_tRSAKey->dmp1,d,r1,ctx)) goto err;

    /* calculate d mod (q-1) */
    if (!BN_mod(p_tRSAKey->dmq1,d,r2,ctx)) goto err;

    /* calculate inverse of q mod p */
    if (!(p_tRSAKey->flags & RSA_FLAG_NO_CONSTTIME))
        {
        p = &local_p;
        BN_with_flags(p, p_tRSAKey->p, BN_FLG_CONSTTIME);
        }
    else
        p = p_tRSAKey->p;
    if (!BN_mod_inverse(p_tRSAKey->iqmp,p_tRSAKey->q,p,ctx)) goto err;

    // Write the RSA structure to a PEM file
    if ((out=BIO_new(BIO_s_file())) == NULL)
        {
        printf("unable to create BIO for output\n");
        goto err;
        }
    if (BIO_write_filename(out,"newkey.pem") <= 0)
        {
        perror("newkey.pem");
        goto err;
        }

    //  Output RSA Key in PEM format (without password !)
    if (!PEM_write_bio_RSAPrivateKey(out,p_tRSAKey,NULL,NULL,0,NULL,NULL))
        goto err;

    // ALL OK !

    ok=1;
err:
    if (ok == -1)
        {
        printf("Actions failed\n");
        ok=0;
        }
    if (ctx != NULL)
        {
        BN_CTX_end(ctx);
        BN_CTX_free(ctx);
        }

    return ok;
    }

e_os.h

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
/* e_os.h */
/* Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
 * All rights reserved.
 *
 * This package is an SSL implementation written
 * by Eric Young (eay@cryptsoft.com).
 * The implementation was written so as to conform with Netscapes SSL.
 *
 * This library is free for commercial and non-commercial use as long as
 * the following conditions are aheared to.  The following conditions
 * apply to all code found in this distribution, be it the RC4, RSA,
 * lhash, DES, etc., code; not just the SSL code.  The SSL documentation
 * included with this distribution is covered by the same copyright terms
 * except that the holder is Tim Hudson (tjh@cryptsoft.com).
 *
 * Copyright remains Eric Young's, and as such any Copyright notices in
 * the code are not to be removed.
 * If this package is used in a product, Eric Young should be given attribution
 * as the author of the parts of the library used.
 * This can be in the form of a textual message at program startup or
 * in documentation (online or textual) provided with the package.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 * 1. Redistributions of source code must retain the copyright
 *    notice, this list of conditions and the following disclaimer.
 * 2. Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the distribution.
 * 3. All advertising materials mentioning features or use of this software
 *    must display the following acknowledgement:
 *    "This product includes cryptographic software written by
 *     Eric Young (eay@cryptsoft.com)"
 *    The word 'cryptographic' can be left out if the rouines from the library
 *    being used are not cryptographic related :-).
 * 4. If you include any Windows specific code (or a derivative thereof) from
 *    the apps directory (application code) you must include an acknowledgement:
 *    "This product includes software written by Tim Hudson (tjh@cryptsoft.com)"
 *
 * THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND
 * ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
 * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
 * ARE DISCLAIMED.  IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE
 * FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
 * DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
 * OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
 * HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
 * LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
 * OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
 * SUCH DAMAGE.
 *
 * The licence and distribution terms for any publically available version or
 * derivative of this code cannot be changed.  i.e. this code cannot simply be
 * copied and put under another distribution licence
 * [including the GNU Public Licence.]
 */

#ifndef HEADER_E_OS_H
#define HEADER_E_OS_H

#include <openssl/opensslconf.h>

#include <openssl/e_os2.h>
/* <openssl/e_os2.h> contains what we can justify to make visible
 * to the outside; this file e_os.h is not part of the exported
 * interface. */

#ifdef  __cplusplus
extern "C" {
#endif

/* Used to checking reference counts, most while doing perl5 stuff :-) */
#ifdef REF_PRINT
#undef REF_PRINT
#define REF_PRINT(a,b)    fprintf(stderr,"%08X:%4d:%s\n",(int)b,b->references,a)
#endif

#ifndef DEVRANDOM
/* set this to a comma-separated list of 'random' device files to try out.
 * My default, we will try to read at least one of these files */
#define DEVRANDOM "/dev/urandom","/dev/random","/dev/srandom"
#endif
#ifndef DEVRANDOM_EGD
/* set this to a comma-seperated list of 'egd' sockets to try out. These
 * sockets will be tried in the order listed in case accessing the device files
 * listed in DEVRANDOM did not return enough entropy. */
#define DEVRANDOM_EGD "/var/run/egd-pool","/dev/egd-pool","/etc/egd-pool","/etc/entropy"
#endif

#if defined(OPENSSL_SYS_VXWORKS)
#  define NO_SYS_PARAM_H
#  define NO_CHMOD
#  define NO_SYSLOG
#endif

#if defined(OPENSSL_SYS_MACINTOSH_CLASSIC)
# if macintosh==1
#  ifndef MAC_OS_GUSI_SOURCE
#    define MAC_OS_pre_X
#    define NO_SYS_TYPES_H
     typedef long ssize_t;
#  endif
#  define NO_SYS_PARAM_H
#  define NO_CHMOD
#  define NO_SYSLOG
#  undef  DEVRANDOM
#  define GETPID_IS_MEANINGLESS
# endif
#endif

/********************************************************************
 The Microsoft section
 ********************************************************************/
/* The following is used becaue of the small stack in some
 * Microsoft operating systems */
#if defined(OPENSSL_SYS_MSDOS) && !defined(OPENSSL_SYSNAME_WIN32)
#  define MS_STATIC    static
#else
#  define MS_STATIC
#endif

#if defined(OPENSSL_SYS_WIN32) && !defined(WIN32)
#  define WIN32
#endif
#if defined(OPENSSL_SYS_WIN16) && !defined(WIN16)
#  define WIN16
#endif
#if defined(OPENSSL_SYS_WINDOWS) && !defined(WINDOWS)
#  define WINDOWS
#endif
#if defined(OPENSSL_SYS_MSDOS) && !defined(MSDOS)
#  define MSDOS
#endif

#if defined(MSDOS) && !defined(GETPID_IS_MEANINGLESS)
#  define GETPID_IS_MEANINGLESS
#endif

#ifdef WIN32
#define get_last_sys_error()    GetLastError()
#define clear_sys_error()    SetLastError(0)
#if !defined(WINNT)
#define WIN_CONSOLE_BUG
#endif
#else
#define get_last_sys_error()    errno
#define clear_sys_error()    errno=0
#endif

#if defined(WINDOWS)
#define get_last_socket_error()    WSAGetLastError()
#define clear_socket_error()    WSASetLastError(0)
#define readsocket(s,b,n)    recv((s),(b),(n),0)
#define writesocket(s,b,n)    send((s),(b),(n),0)
#define EADDRINUSE        WSAEADDRINUSE
#elif defined(__DJGPP__)
#define WATT32
#define get_last_socket_error()    errno
#define clear_socket_error()    errno=0
#define closesocket(s)        close_s(s)
#define readsocket(s,b,n)    read_s(s,b,n)
#define writesocket(s,b,n)    send(s,b,n,0)
#elif defined(MAC_OS_pre_X)
#define get_last_socket_error()    errno
#define clear_socket_error()    errno=0
#define closesocket(s)        MacSocket_close(s)
#define readsocket(s,b,n)    MacSocket_recv((s),(b),(n),true)
#define writesocket(s,b,n)    MacSocket_send((s),(b),(n))
#elif defined(OPENSSL_SYS_VMS)
#define get_last_socket_error() errno
#define clear_socket_error()    errno=0
#define ioctlsocket(a,b,c)      ioctl(a,b,c)
#define closesocket(s)          close(s)
#define readsocket(s,b,n)       recv((s),(b),(n),0)
#define writesocket(s,b,n)      send((s),(b),(n),0)
#elif defined(OPENSSL_SYS_VXWORKS)
#define get_last_socket_error()    errno
#define clear_socket_error()    errno=0
#define ioctlsocket(a,b,c)        ioctl((a),(b),(int)(c))
#define closesocket(s)            close(s)
#define readsocket(s,b,n)        read((s),(b),(n))
#define writesocket(s,b,n)        write((s),(char *)(b),(n))
#elif defined(OPENSSL_SYS_NETWARE)
#if defined(NETWARE_BSDSOCK)
#define get_last_socket_error() errno
#define clear_socket_error()    errno=0
#define closesocket(s)          close(s)
#define ioctlsocket(a,b,c)      ioctl(a,b,c)
#if defined(NETWARE_LIBC)
#define readsocket(s,b,n)       recv((s),(b),(n),0)
#define writesocket(s,b,n)      send((s),(b),(n),0)
#else
#define readsocket(s,b,n)       recv((s),(char*)(b),(n),0)
#define writesocket(s,b,n)      send((s),(char*)(b),(n),0)
#endif
#else
#define get_last_socket_error()    WSAGetLastError()
#define clear_socket_error()    WSASetLastError(0)
#define readsocket(s,b,n)        recv((s),(b),(n),0)
#define writesocket(s,b,n)        send((s),(b),(n),0)
#endif
#else
#define get_last_socket_error()    errno
#define clear_socket_error()    errno=0
#define ioctlsocket(a,b,c)    ioctl(a,b,c)
#define closesocket(s)        close(s)
#define readsocket(s,b,n)    read((s),(b),(n))
#define writesocket(s,b,n)    write((s),(b),(n))
#endif

#ifdef WIN16
#  define MS_CALLBACK    _far _loadds
#  define MS_FAR    _far
#else
#  define MS_CALLBACK
#  define MS_FAR
#endif

#ifdef OPENSSL_NO_STDIO
#  undef OPENSSL_NO_FP_API
#  define OPENSSL_NO_FP_API
#endif

#if (defined(WINDOWS) || defined(MSDOS))

#  ifdef __DJGPP__
#    include <unistd.h>
#    include <sys/stat.h>
#    include <sys/socket.h>
#    include <tcp.h>
#    include <netdb.h>
#    define _setmode setmode
#    define _O_TEXT O_TEXT
#    define _O_BINARY O_BINARY
#    undef DEVRANDOM
#    define DEVRANDOM "/dev/urandom\x24"
#  endif /* __DJGPP__ */

#  ifndef S_IFDIR
#    define S_IFDIR    _S_IFDIR
#  endif

#  ifndef S_IFMT
#    define S_IFMT    _S_IFMT
#  endif

#  if !defined(WINNT) && !defined(__DJGPP__)
#    define NO_SYSLOG
#  endif
#  define NO_DIRENT

#  ifdef WINDOWS
#    if !defined(_WIN32_WCE) && !defined(_WIN32_WINNT)
       /*
    * Defining _WIN32_WINNT here in e_os.h implies certain "discipline."
    * Most notably we ought to check for availability of each specific
    * routine with GetProcAddress() and/or quard NT-specific calls with
    * GetVersion() < 0x80000000. One can argue that in latter "or" case
    * we ought to /DELAYLOAD some .DLLs in order to protect ourselves
    * against run-time link errors. This doesn't seem to be necessary,
    * because it turned out that already Windows 95, first non-NT Win32
    * implementation, is equipped with at least NT 3.51 stubs, dummy
    * routines with same name, but which do nothing. Meaning that it's
    * apparently appropriate to guard generic NT calls with GetVersion
    * alone, while NT 4.0 and above calls ought to be additionally
    * checked upon with GetProcAddress.
    */
#      define _WIN32_WINNT 0x0400
#    endif
#    include <windows.h>
#    include <stdio.h>
#    include <stddef.h>
#    include <errno.h>
#    include <string.h>
#    ifdef _WIN64
#      define strlen(s) _strlen31(s)
/* cut strings to 2GB */
static unsigned int _strlen31(const char *str)
    {
    unsigned int len=0;
    while (*str && len<0x80000000U) str++, len++;
    return len&0x7FFFFFFF;
    }
#    endif
#    include <malloc.h>
#    if defined(_MSC_VER) && _MSC_VER<=1200 && defined(_MT) && defined(isspace)
       /* compensate for bug in VC6 ctype.h */
#      undef isspace
#      undef isdigit
#      undef isalnum
#      undef isupper
#      undef isxdigit
#    endif
#    if defined(_MSC_VER) && !defined(_DLL) && defined(stdin)
#      if _MSC_VER>=1300
#        undef stdin
#        undef stdout
#        undef stderr
         FILE *__iob_func();
#        define stdin  (&__iob_func()[0])
#        define stdout (&__iob_func()[1])
#        define stderr (&__iob_func()[2])
#      elif defined(I_CAN_LIVE_WITH_LNK4049)
#        undef stdin
#        undef stdout
#        undef stderr
         /* pre-1300 has __p__iob(), but it's available only in msvcrt.lib,
          * or in other words with /MD. Declaring implicit import, i.e.
          * with _imp_ prefix, works correctly with all compiler options,
          * but without /MD results in LINK warning LNK4049:
          * 'locally defined symbol "__iob" imported'.
          */
         extern FILE *_imp___iob;
#        define stdin  (&_imp___iob[0])
#        define stdout (&_imp___iob[1])
#        define stderr (&_imp___iob[2])
#      endif
#    endif
#  endif
#  include <io.h>
#  include <fcntl.h>

#  ifdef OPENSSL_SYS_WINCE
#    include <winsock_extras.h>
#  endif

#  define ssize_t long

#  if defined (__BORLANDC__)
#    define _setmode setmode
#    define _O_TEXT O_TEXT
#    define _O_BINARY O_BINARY
#    define _int64 __int64
#    define _kbhit kbhit
#  endif

#  if defined(WIN16) && defined(SSLEAY) && defined(_WINEXITNOPERSIST)
#    define EXIT(n) _wsetexit(_WINEXITNOPERSIST)
#    define OPENSSL_EXIT(n) do { if (n == 0) EXIT(n); return(n); } while(0)
#  else
#    define EXIT(n) exit(n)
#  endif
#  define LIST_SEPARATOR_CHAR ';'
#  ifndef X_OK
#    define X_OK    0
#  endif
#  ifndef W_OK
#    define W_OK    2
#  endif
#  ifndef R_OK
#    define R_OK    4
#  endif
#  define OPENSSL_CONF    "openssl.cnf"
#  define SSLEAY_CONF    OPENSSL_CONF
#  define NUL_DEV    "nul"
#  define RFILE        ".rnd"
#  ifdef OPENSSL_SYS_WINCE
#    define DEFAULT_HOME  ""
#  else
#    define DEFAULT_HOME  "C:"
#  endif

#else /* The non-microsoft world world */

#  ifdef OPENSSL_SYS_VMS
#    define VMS 1
  /* some programs don't include stdlib, so exit() and others give implicit
     function warnings */
#    include <stdlib.h>
#    if defined(__DECC)
#      include <unistd.h>
#    else
#      include <unixlib.h>
#    endif
#    define OPENSSL_CONF    "openssl.cnf"
#    define SSLEAY_CONF        OPENSSL_CONF
#    define RFILE        ".rnd"
#    define LIST_SEPARATOR_CHAR ','
#    define NUL_DEV        "NLA0:"
  /* We don't have any well-defined random devices on VMS, yet... */
#    undef DEVRANDOM
  /* We need to do this since VMS has the following coding on status codes:

     Bits 0-2: status type: 0 = warning, 1 = success, 2 = error, 3 = info ...
               The important thing to know is that odd numbers are considered
           good, while even ones are considered errors.
     Bits 3-15: actual status number
     Bits 16-27: facility number.  0 is considered "unknown"
     Bits 28-31: control bits.  If bit 28 is set, the shell won't try to
                 output the message (which, for random codes, just looks ugly)

     So, what we do here is to change 0 to 1 to get the default success status,
     and everything else is shifted up to fit into the status number field, and
     the status is tagged as an error, which I believe is what is wanted here.
     -- Richard Levitte
  */
#    define EXIT(n)        do { int __VMS_EXIT = n; \
                                     if (__VMS_EXIT == 0) \
                       __VMS_EXIT = 1; \
                     else \
                       __VMS_EXIT = (n << 3) | 2; \
                                     __VMS_EXIT |= 0x10000000; \
                     exit(__VMS_EXIT); } while(0)
#    define NO_SYS_PARAM_H

#  elif defined(OPENSSL_SYS_NETWARE)
#    include <fcntl.h>
#    include <unistd.h>
#    define NO_SYS_TYPES_H
#    undef  DEVRANDOM
#    ifdef NETWARE_CLIB
#      define getpid GetThreadID
       extern int GetThreadID(void);
/* #      include <conio.h> */
       extern int kbhit(void);
       extern void delay(unsigned milliseconds);
#    else
#      include <screen.h>
#    endif
#    define NO_SYSLOG
#    define _setmode setmode
#    define _kbhit kbhit
#    define _O_TEXT O_TEXT
#    define _O_BINARY O_BINARY
#    define OPENSSL_CONF   "openssl.cnf"
#    define SSLEAY_CONF    OPENSSL_CONF
#    define RFILE    ".rnd"
#    define LIST_SEPARATOR_CHAR ';'
#    define EXIT(n)  { if (n) printf("ERROR: %d\n", (int)n); exit(n); }

#  else
     /* !defined VMS */
#    ifdef OPENSSL_SYS_MPE
#      define NO_SYS_PARAM_H
#    endif
#    ifdef OPENSSL_UNISTD
#      include OPENSSL_UNISTD
#    else
#      include <unistd.h>
#    endif
#    ifndef NO_SYS_TYPES_H
#      include <sys/types.h>
#    endif
#    if defined(NeXT) || defined(OPENSSL_SYS_NEWS4)
#      define pid_t int /* pid_t is missing on NEXTSTEP/OPENSTEP
                         * (unless when compiling with -D_POSIX_SOURCE,
                         * which doesn't work for us) */
#    endif
#    if defined(NeXT) || defined(OPENSSL_SYS_NEWS4) || defined(OPENSSL_SYS_SUNOS)
#      define ssize_t int /* ditto */
#    endif
#    ifdef OPENSSL_SYS_NEWS4 /* setvbuf is missing on mips-sony-bsd */
#      define setvbuf(a, b, c, d) setbuffer((a), (b), (d))
       typedef unsigned long clock_t;
#    endif

#    define OPENSSL_CONF    "openssl.cnf"
#    define SSLEAY_CONF        OPENSSL_CONF
#    define RFILE        ".rnd"
#    define LIST_SEPARATOR_CHAR ':'
#    define NUL_DEV        "/dev/null"
#    define EXIT(n)        exit(n)
#  endif

#  define SSLeay_getpid()    getpid()

#endif

/*************/

#ifdef USE_SOCKETS
#  if defined(WINDOWS) || defined(MSDOS)
      /* windows world */

#    ifdef OPENSSL_NO_SOCK
#      define SSLeay_Write(a,b,c)    (-1)
#      define SSLeay_Read(a,b,c)    (-1)
#      define SHUTDOWN(fd)        close(fd)
#      define SHUTDOWN2(fd)        close(fd)
#    elif !defined(__DJGPP__)
#      include <winsock.h>
extern HINSTANCE _hInstance;
#      ifdef _WIN64
/*
 * Even though sizeof(SOCKET) is 8, it's safe to cast it to int, because
 * the value constitutes an index in per-process table of limited size
 * and not a real pointer.
 */
#        define socket(d,t,p)    ((int)socket(d,t,p))
#        define accept(s,f,l)    ((int)accept(s,f,l))
#      endif
#      define SSLeay_Write(a,b,c)    send((a),(b),(c),0)
#      define SSLeay_Read(a,b,c)    recv((a),(b),(c),0)
#      define SHUTDOWN(fd)        { shutdown((fd),0); closesocket(fd); }
#      define SHUTDOWN2(fd)        { shutdown((fd),2); closesocket(fd); }
#    else
#      define SSLeay_Write(a,b,c)    write_s(a,b,c,0)
#      define SSLeay_Read(a,b,c)    read_s(a,b,c)
#      define SHUTDOWN(fd)        close_s(fd)
#      define SHUTDOWN2(fd)        close_s(fd)
#    endif

#  elif defined(MAC_OS_pre_X)

#    include "MacSocket.h"
#    define SSLeay_Write(a,b,c)        MacSocket_send((a),(b),(c))
#    define SSLeay_Read(a,b,c)        MacSocket_recv((a),(b),(c),true)
#    define SHUTDOWN(fd)        MacSocket_close(fd)
#    define SHUTDOWN2(fd)        MacSocket_close(fd)

#  elif defined(OPENSSL_SYS_NETWARE)
         /* NetWare uses the WinSock2 interfaces by default, but can be configured for BSD
         */
#      if defined(NETWARE_BSDSOCK)
#        include <sys/socket.h>
#        include <netinet/in.h>
#        include <sys/time.h>
#        if defined(NETWARE_CLIB)
#          include <sys/bsdskt.h>
#        else
#          include <sys/select.h>
#        endif
#        define INVALID_SOCKET (int)(~0)
#      else
#        include <novsock2.h>
#      endif
#      define SSLeay_Write(a,b,c)   send((a),(b),(c),0)
#      define SSLeay_Read(a,b,c) recv((a),(b),(c),0)
#      define SHUTDOWN(fd)    { shutdown((fd),0); closesocket(fd); }
#      define SHUTDOWN2(fd)      { shutdown((fd),2); closesocket(fd); }

#  else

#    ifndef NO_SYS_PARAM_H
#      include <sys/param.h>
#    endif
#    ifdef OPENSSL_SYS_VXWORKS
#      include <time.h>
#    elif !defined(OPENSSL_SYS_MPE)
#      include <sys/time.h> /* Needed under linux for FD_XXX */
#    endif

#    include <netdb.h>
#    if defined(OPENSSL_SYS_VMS_NODECC)
#      include <socket.h>
#      include <in.h>
#      include <inet.h>
#    else
#      include <sys/socket.h>
#      ifdef FILIO_H
#        include <sys/filio.h> /* Added for FIONBIO under unixware */
#      endif
#      include <netinet/in.h>
#      include <arpa/inet.h>
#    endif

#    if defined(NeXT) || defined(_NEXT_SOURCE)
#      include <sys/fcntl.h>
#      include <sys/types.h>
#    endif

#    ifdef OPENSSL_SYS_AIX
#      include <sys/select.h>
#    endif

#    ifdef __QNX__
#      include <sys/select.h>
#    endif

#    if defined(sun)
#      include <sys/filio.h>
#    else
#      ifndef VMS
#        include <sys/ioctl.h>
#      else
     /* ioctl is only in VMS > 7.0 and when socketshr is not used */
#        if !defined(TCPIP_TYPE_SOCKETSHR) && defined(__VMS_VER) && (__VMS_VER > 70000000)
#          include <sys/ioctl.h>
#        endif
#      endif
#    endif

#    ifdef VMS
#      include <unixio.h>
#      if defined(TCPIP_TYPE_SOCKETSHR)
#        include <socketshr.h>
#      endif
#    endif

#    define SSLeay_Read(a,b,c)     read((a),(b),(c))
#    define SSLeay_Write(a,b,c)    write((a),(b),(c))
#    define SHUTDOWN(fd)    { shutdown((fd),0); closesocket((fd)); }
#    define SHUTDOWN2(fd)   { shutdown((fd),2); closesocket((fd)); }
#    ifndef INVALID_SOCKET
#    define INVALID_SOCKET    (-1)
#    endif /* INVALID_SOCKET */
#  endif
#endif

#if defined(__ultrix)
#  ifndef ssize_t
#    define ssize_t int
#  endif
#endif

#if defined(sun) && !defined(__svr4__) && !defined(__SVR4)
  /* include headers first, so our defines don't break it */
#include <stdlib.h>
#include <string.h>
  /* bcopy can handle overlapping moves according to SunOS 4.1.4 manpage */
# define memmove(s1,s2,n) bcopy((s2),(s1),(n))
# define strtoul(s,e,b) ((unsigned long int)strtol((s),(e),(b)))
extern char *sys_errlist[]; extern int sys_nerr;
# define strerror(errnum) \
    (((errnum)<0 || (errnum)>=sys_nerr) ? NULL : sys_errlist[errnum])
  /* Being signed SunOS 4.x memcpy breaks ASN1_OBJECT table lookup */
#include "crypto/o_str.h"
# define memcmp OPENSSL_memcmp
#endif

#ifndef OPENSSL_EXIT
# if defined(MONOLITH) && !defined(OPENSSL_C)
#  define OPENSSL_EXIT(n) return(n)
# else
#  define OPENSSL_EXIT(n) do { EXIT(n); return(n); } while(0)
# endif
#endif

/***********************************************/

/* do we need to do this for getenv.
 * Just define getenv for use under windows */

#ifdef WIN16
/* How to do this needs to be thought out a bit more.... */
/*char *GETENV(char *);
#define Getenv    GETENV*/
#define Getenv    getenv
#else
#define Getenv getenv
#endif

#define DG_GCC_BUG    /* gcc < 2.6.3 on DGUX */

#ifdef sgi
#define IRIX_CC_BUG    /* all version of IRIX I've tested (4.* 5.*) */
#endif
#ifdef OPENSSL_SYS_SNI
#define IRIX_CC_BUG    /* CDS++ up to V2.0Bsomething suffered from the same bug.*/
#endif

#if defined(OPENSSL_SYS_WINDOWS)
#  define strcasecmp _stricmp
#  define strncasecmp _strnicmp
#elif defined(OPENSSL_SYS_VMS)
/* VMS below version 7.0 doesn't have strcasecmp() */
#  include "o_str.h"
#  define strcasecmp OPENSSL_strcasecmp
#  define strncasecmp OPENSSL_strncasecmp
#  define OPENSSL_IMPLEMENTS_strncasecmp
#elif defined(OPENSSL_SYS_OS2) && defined(__EMX__)
#  define strcasecmp stricmp
#  define strncasecmp strnicmp
#elif defined(OPENSSL_SYS_NETWARE)
#  include <string.h>
#  if defined(NETWARE_CLIB)
#    define strcasecmp stricmp
#    define strncasecmp strnicmp
#  endif /* NETWARE_CLIB */
#endif

#if defined(OPENSSL_SYS_OS2) && defined(__EMX__)
# include <io.h>
# include <fcntl.h>
# define NO_SYSLOG
#endif

/* vxworks */
#if defined(OPENSSL_SYS_VXWORKS)
#include <ioLib.h>
#include <tickLib.h>
#include <sysLib.h>

#define TTY_STRUCT int

#define sleep(a) taskDelay((a) * sysClkRateGet())

#include <vxWorks.h>
#include <sockLib.h>
#include <taskLib.h>

#define getpid taskIdSelf

/* NOTE: these are implemented by helpers in database app!
 * if the database is not linked, we need to implement them
 * elswhere */
struct hostent *gethostbyname(const char *name);
struct hostent *gethostbyaddr(const char *addr, int length, int type);
struct servent *getservbyname(const char *name, const char *proto);

#endif
/* end vxworks */

#ifdef  __cplusplus
}
#endif

#endif

이제 해당 코드를 컴파일 하여 키를 생성해 보도록 하자.

1
2
3
4
5
[byjjoon@ByJJoon SSL]$ gcc -lssl CreatePEM.c
[byjjoon@ByJJoon SSL]$ ./a.out
[byjjoon@ByJJoon SSL]$ ls
a.out  CreatePEM.c  e_os.h  newkey.pem
[byjjoon@ByJJoon SSL]$

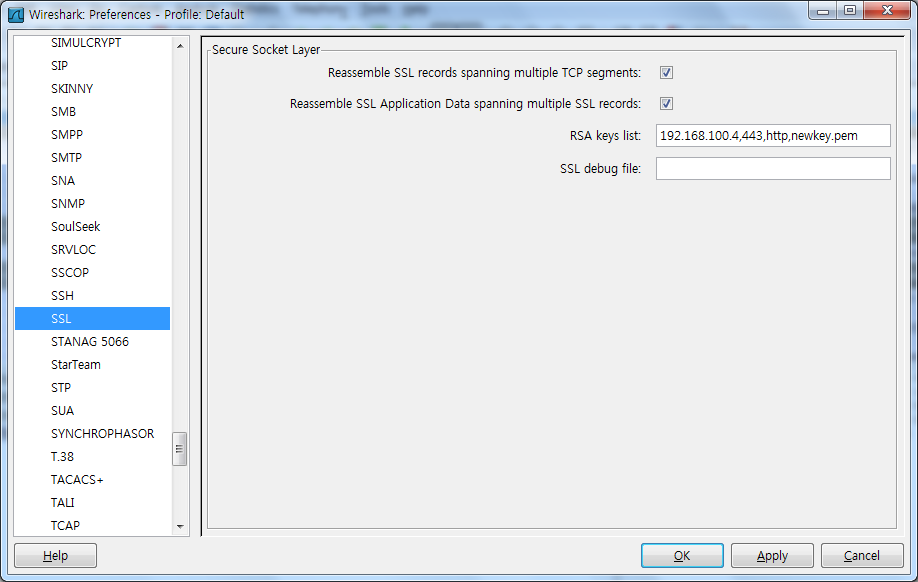

생성된 키를 아래와 같이 Wireshark 에서 [Edit] - [Preferences] 메뉴에서 아래와 같이 설정 하도록 하자.

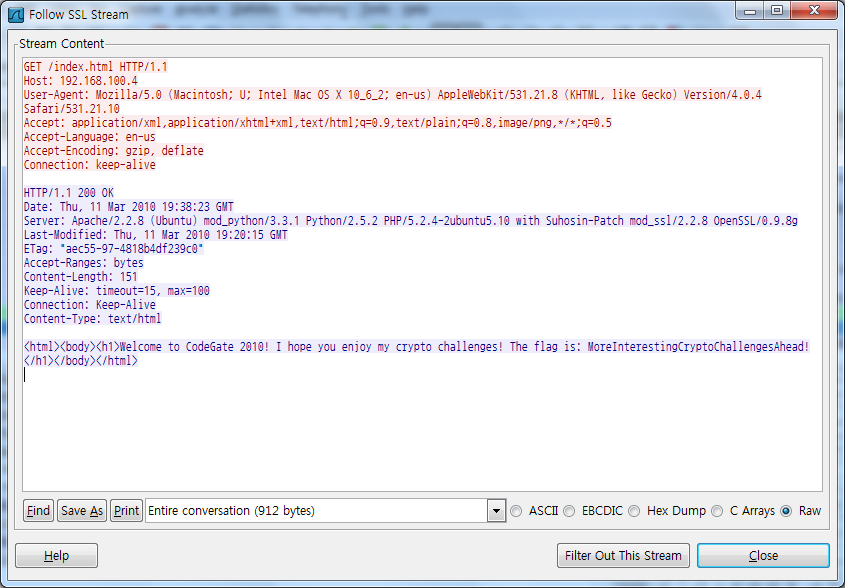

적용 후 패킷을 확인해 보도록 하자.

[참고] http://www.vnsecurity.net/2010/03/codegate-2010-challenge7-weak-ssl-cracking/ http://blog.stalkr.net/2010/03/codegate-decrypting-https-ssl-rsa-768.html http://linkc.tistory.com/133

마지막 수정: 2025-12-06
Hugo로 만듦
Jimmy의 Stack 테마 사용 중
